Socket tester with digital display Habotest HT107D
Habotest HT107D socket tester with digital display
Keep your home safe with a socket tester from Habotest. This small and practical device features a digital display and LED indicator that will provide you with the most important information. The device will inform you about the lack of grounding, and it will also enable you to perform RCD test. Thanks to HT107D, you can avoid damage to your equipment and prevent other hazards.

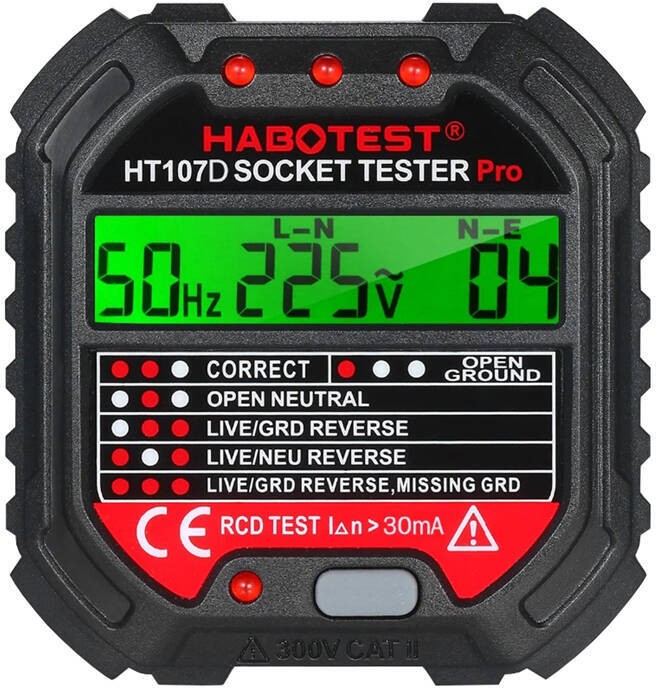

Clear digital display
The tester is equipped with a bright digital display, with which you can easily read the measurement results. The LED indicator located on the top of the device will inform you of any problems. If the tester detects any abnormality, the LEDs will light up in a specific combination. In this way, you will quickly find out, for example, about a correct connection, lack of grounding, live wire, etc. With the HT107D you can also perform a simple RCD test, just by pressing the appropriate button.
Wide application
The Habotest brand device is distinguished by its versatile application. It will prove useful for testing sockets at home, in the office, power strips, wall sockets at school, laboratory, factory, etc. Thanks to its compact design, you can easily store it in your bag or backpack.
| Brand | Habotest | |
|---|---|---|
| Model | HT107D | HT106D |
| Material | fireproof ABS | fireproof ABS |
| Voltage range | 90 ~ 250V | AC 48-250V |
| RCD testing | > 30 mA | > 30 mA |
| Voltage measurement | Yes, 48V ~ 250V / 45 ~ 65 Hz | Yes, 48-250 V / 45-65 Hz |
| LCD | Yes | Yes |
| Backlight | Yes | Yes |
| Security | EN61010-1, -2-030; EN61326-1, CAT II 300V | EN61010-1, -2-030; EN61326-1, CAT II 300V |
| Dimensions | 65 x 62 x 58 mm | 65 x 62 x 58 mm |
| Weight | 74g | ok. 50g |
| Accuracy | ± (2.0% + 2) | ± (2.0% + 2) |
| RCD operating voltage | 220V ± 20V | 220V ± 20V |
| GFCI operating voltage | 110V ± 20V | 110V ± 20V |
| Working environment | 0 ℃ ～ 40 ℃, 20% ～ 75% RH | 0 ℃ ～ 40 ℃, 20% ～ 75% RH |
| Storage environment | -10 ℃ ～ 50 ℃, 20% ～ 80% RH | -10 ℃ ～ 50 ℃, 20% ～ 80% RH |
