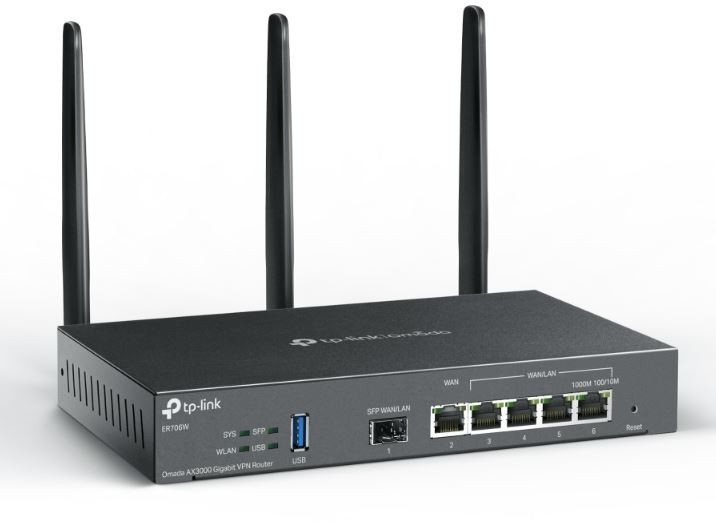

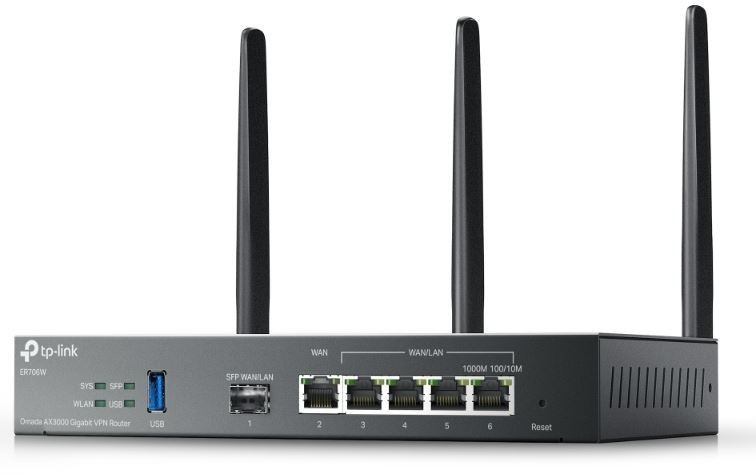

ER706W

• Omada gigabit VPN router, AX3000 standard
• AX3000 Dual Band WiFi: Up to 2402 Mbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band.
• 6 Gigabit Ethernet Ports: 1 Gigabit SFP port and 5 Gigabit RJ45 ports ensure high-speed wired connections.
• Omada Mesh: Seamlessly connect Mesh-enabled EAPs.
• Central management: Access from the Cloud and the Omada application provides convenient management.
• Long range: Three external antennas increase and concentrate the Wi-Fi signal.
• Secure VPN: The router supports multiple VPN protocols, including IPSec / SSL / Wireguard / PPTP / L2TP VPN, making it easier for users to connect remotely.
• Reliable security: Firewall, DoS attack protection, IP/MAC/URL filtering and even more features to protect your network and data.

Ubiquitous connectivity starts with Wi-Fi 6

The ER706W is a dual-band, enterprise-class wireless router. It is the perfect solution for remote administration requiring high performance because it offers a revolutionary combination of the latest WiFi 6 technology, including HE160, OFDMA, 1024 QAM, and much more. Speeds of up to 2402 Mbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band enable the ER706W to deliver total transmission rates of up to 3Gbps. A network with virtually no buffering is at your fingertips.

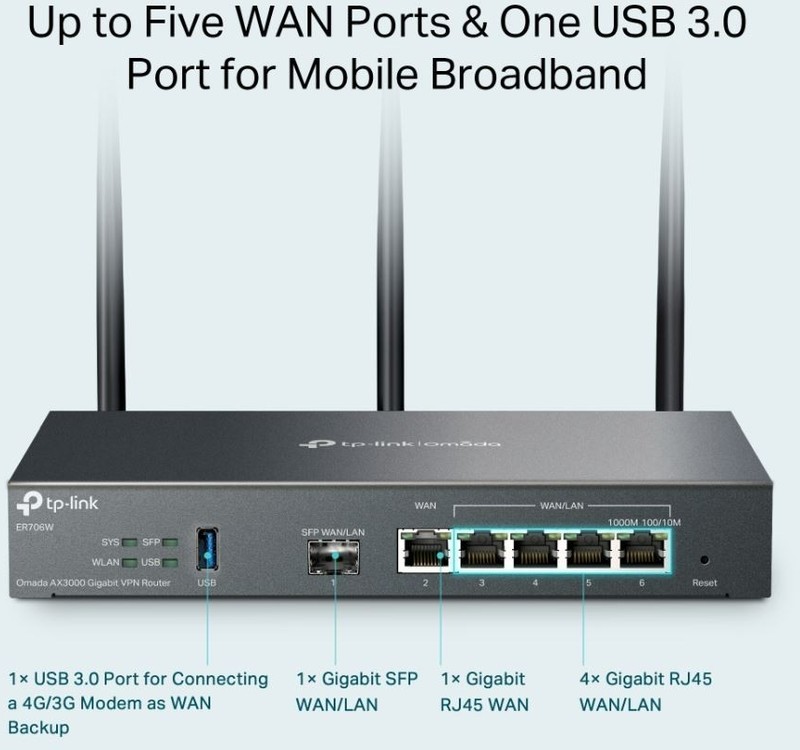

Up to 5 WAN ports, 1 USB 3.0 port for mobile broadband

Supporting up to 5 SFP and RJ45 WAN ports enables the router to meet various Internet access requirements. MultiWAN link balancing distributes data streams based on the bandwidth ratio of each WAN port to scale up the use of multiple broadband links.

Connect a 4G/3G modem to a USB 3.0 port for an LTE WAN backup connection. Professional components build the future of Wi-Fi

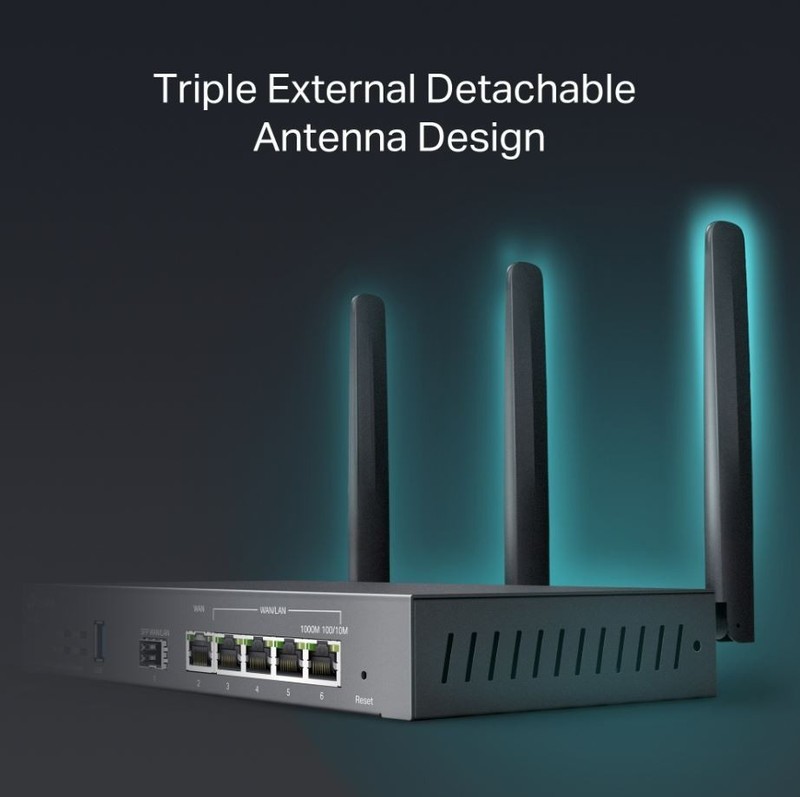

Three external, detachable antennas provide the ER706W with excellent wireless coverage, stable signal strength and high data reception sensitivity. Users can adjust the angle of the antennas to adapt the device to different network conditions. The ER706W router is enclosed in a metal housing to improve heat conduction and dissipation, thus ensuring the stability of the device.

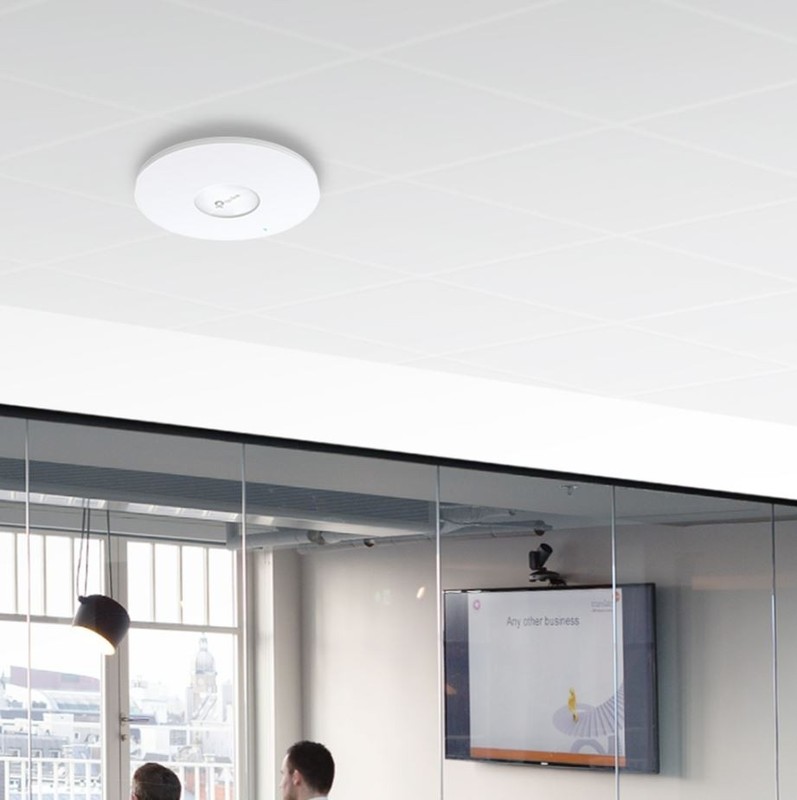

Automatic network organization with Omada access points

The ER706W is able to create a seamless connection to Omada access points supporting Mesh technology**, being an ideal solution for large-scale environments. Intelligent optimization selects the best path between the ER706W and EAP access points, and Self-healing ensures they remain online even if one access point goes down.

Secure VPN

Passing VPN traffic and supporting multiple VPN protocols such as IPSec/SSL/Wireguard/PPTP/L2TP VPN through the ER706W gives users versatile options. One-click automatic IPSec VPN simplifies VPN configuration along with network management and deployment. The router also has a built-in hardware engine to increase VPN performance.

Omada SDN a smarter cloud solution for enterprise networks

The path to the future of wireless networking starts with Omada Software Defined Networking (SDN). ER706W as a network gateway that is seamlessly integrated with the Omada SDN platform, enables remote and centralized management anywhere at any time.

Easy management via the Omada app

Using the Omada application, you can configure the ER706W router in standalone mode as well as as a controller. Management in standalone mode provides the greatest convenience because it does not require the configuration of any additional controllers.
