Digitus Wall Mount Cabinet 19 DN-37100
The Dynamic-N series wall-mount network cabinets are designed for simple and cost-effective network expansion. The roof, base, and rear panel of each enclosure are equipped with pre-cut cable entries. The roof enclosure also features a hole for a fan module. Inside, two pairs of galvanized 483 mm (19") profile rails are installed, marked with height units that can be read in both directions. Their depth is adjustable. Each enclosure has a sturdy steel structure made of sheet steel up to 1.2 mm thick. They are electrostatically powder-coated in the standard colors gray (RAL 7035) and black (RAL 9005). Removable side panels and a lockable and removable front door improve accessibility. The door hinges are replaceable. Wall mounting is done in two simple steps: the supplied mounting plate is screwed to the wall and then connected to the enclosure. To simplify logistics, the Dynamic-N series is delivered unassembled in a space-saving flat package. The wall-mounted enclosure can be quickly and easily installed using the included assembly instructions.
- Supplied unassembled
- Optimal ventilation and air extraction
- IP20 protection
- Lockable door with Safety glass with a steel frame
- Door opening angle 230°
- Single-point lock on the front door
- 483 mm (19") profile rails at the front and rear of the enclosure, galvanized
- 483 mm (19") profile rails are depth-adjustable and marked with a height unit
- Durable, high-load-bearing 1.0 - 1.2 mm powder-coated steel sheet
- Cable entry from the rear, roof, and base (pre-punched holes)
- Roof is fan-ready (pre-punched mounting holes)
- Ventilation holes for active and passive ventilation

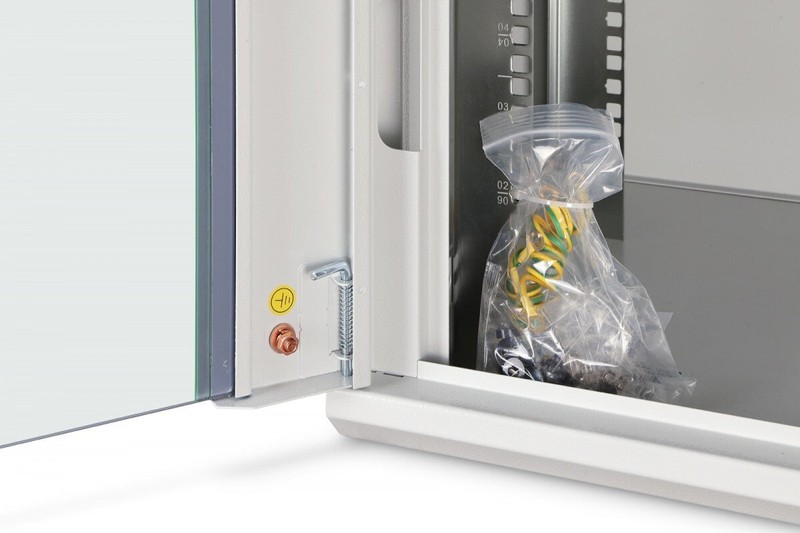

- 4 grounding points (base, side panel, and front door) with protective cap
- Component installation depth (standard maximum): 219 - 320 mm
