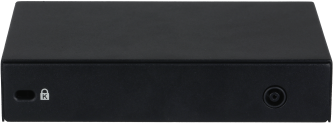

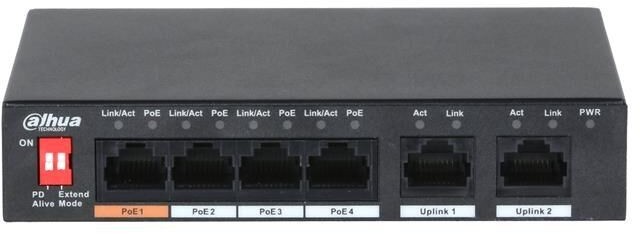

Dahua Technology 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports (Total 60W) - PFS3006-4ET-60
- Gigabit RJ-45: None
- Klass: Unmanaged
6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports > Layer two commercial switch > Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards > MDI/MDIX self-adaptation > RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards > Port 1 supports Hi-PoE 60W power supply > 250 m PoE power supply > Wall mounting and mechanical anti-thef > 53V DC power supply > Supports PoE watchdog > Port 1–4: 4 × RJ-45 10/100 M (PoE); Port 5–6: 2 × RJ-45 10/100 M (uplink) > PoE Power: 60W
Ethernet Port: 4
Optical Port: 0
Ethernet Port Rate: 100 Mbps
Number of Business Card Slots: Port 1–4 - 4 × RJ-45 10/100 M (PoE); Port 5–6 - 2 × RJ-45 10/100 M (uplink)
Power Supply: 53V DC
Operating Temperature: –10°C to +55°C (+14°F to +131°F)
Operating Humidity: 5%–95%
Storage Temperature: –20°C to +70°C (–4°F to +158°F)
Power Consumption: Idling - 1.5W; Full load - 60W
Switching Capacity: 1.80 Gbps
Packet Forwarding Rate: 0.89 Mpps
Packet Buffer Size: 1 Mbit
MAC Table Size: 2K
Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3x:
PoE Standard: IEEE802.3af/IEEE802.3at/Hi-PoE
PoE Power: 60W
PoE Power Consumption Management: Yes
PoE Pin Assignment: PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Far Distance Mode: 250 m @10 Mbps
ESD: Air discharge 8kV; Contact discharge 6kV
Thunderproof: Common mode 2kV; Differential mode 1kV
Net Weight: 0.3 kg (0.66 lb)
Product Dimensions: 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
