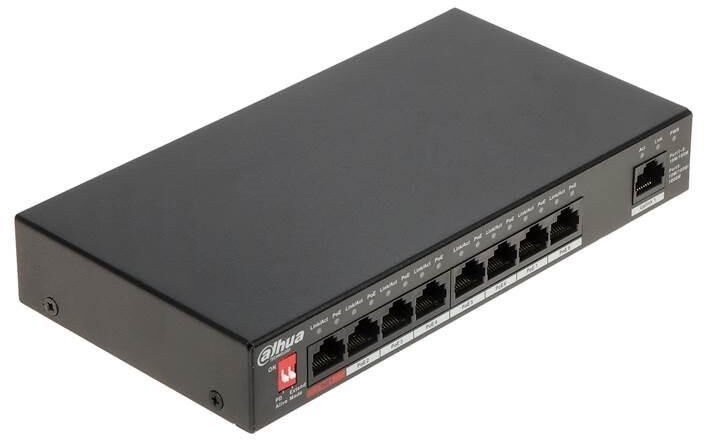

Dahua Technology 9-Port Unmanaged Desktop Switch with 8-Port PoE (Total 96W) - PFS3009-8ET1GT-96
- Gigabit RJ-45: 1
> Intelligent PoE > BT 90W > 8-pin assignment PoE power supply > Long distance PoE > PoE watchdog > Wide working temperature Port 1–8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (Uplink) Capacity: 3.6 Gbps Packet Forwarding Rate: 2.678 Mbps Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt PoE Power: 96W 250 m long distance PoE transmission
Ethernet Port: Port 1-8 - 8 × RJ45 10/100M(PoE); Port 9 - 1 × RJ45 10/100/1000M(Uplink)
PoE Budget: Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W
Power Consumption (static): 2.7W
Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3x
PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE
PoE Pin Assignment: PoE/Hi-PoE:1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance: 250 m, 10 Mbps
Switching Capacity: 3.6 GB
Packet Forwarding Rate: 2.678 Mpps
Packet Buffer Memory: 1 Mbit
MAC Table Size: 2K
Flow Control: Enable by default
Operating Humidity: 5%–95%
Power Supply: External power adpater: 53V DV
Thunderproof: Common mode 4kV; Differential mode: 2kV
ESD: Air discharge 8kV; Contact discharge 6kV
Mounting: Support desktop and wall mounting
Anti-theft Lock Hole
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Weight: Net weight: 0.47 kg (1.04 lb)
Dimensions (W × D × H): 190 mm × 100 mm × 30 mm (7.48” × 3.94” × 0.9”)
