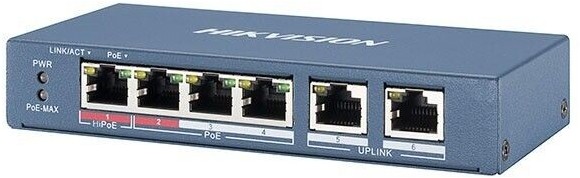

Hikvision DS-3E0106HP-E Unmanaged 4 x 10/100 Mbps POE (60W) + 2 x 10/100 Mbps Uplink
- Klass: Unmanaged
Dimensions (W × H × D): 145 mm × 25.6 mm × 68.45 mm (5.7'' × 1.0'' × 2.7'')
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)

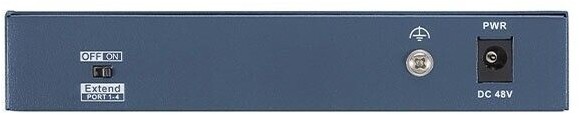

Power Supply: 48 VDC, 1.35 A
Max. Power Consumption: 65W
Power Consumption in Idle: 5W
Installation Mode: Desk-Mounted,Wall-Mounted
Surge Protection: 6KV
Network Parameters

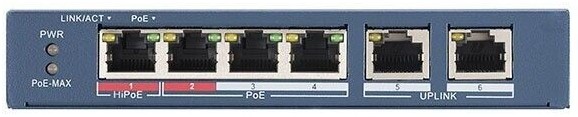

Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table: 2K
Switching Capacity: 1.20Gbps
Packet Forwarding Rate: 0.89Mpps
Internal Cache: 768Kbits
PoE Power Supply
PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: Hi-PoE - Port 1; PoE - Ports 2 to 4
Max. Port Power: Port 1 - 60 W; Ports 2 to 4 - 30 W
PoE Power Budget: 60W
Dialing Function
Long Range: Ports 1 to 4 - up to 300 m
Long range performance may vary depend on camera model or cable condition.
