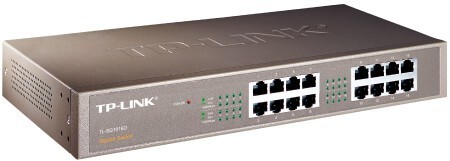

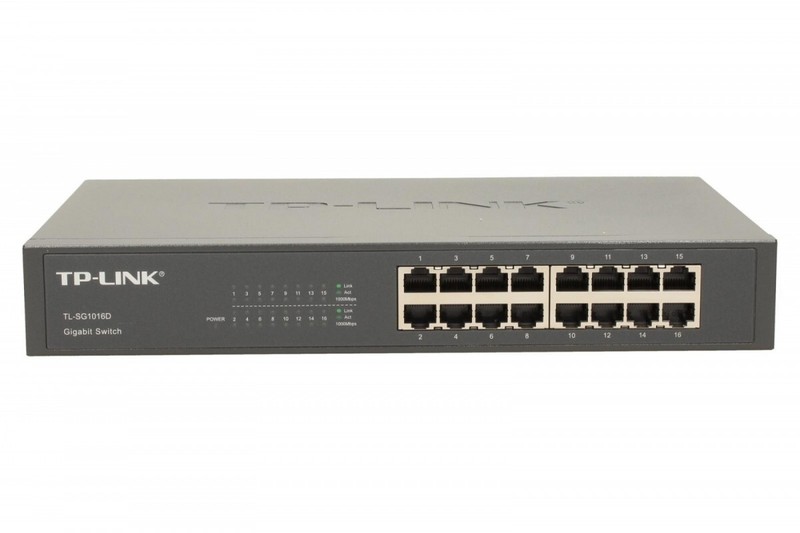

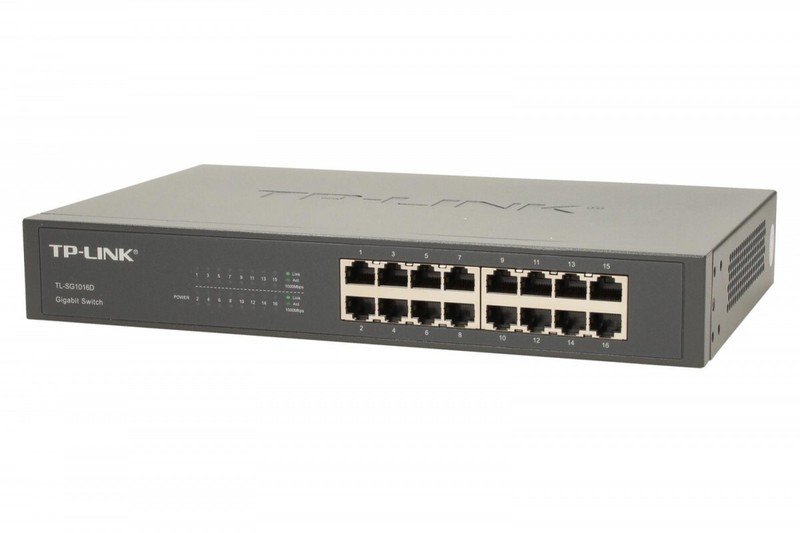

TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.

HARDWARE FEATURES

Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media10Base-T: UTP category 3, 4, 5 cable (maximum 328.1feet)
EIA/TIA-568 100Ù STP (maximum 328.1feet)
100Base-Tx: UTP category 5, 5e cable (maximum 328.1feet)
EIA/TIA-568 100Ù STP (maximum 328.1feet)
1000Base-T: UTP category 5, 5e cable (maximum 328.1feet)
Fan QuantityFanless
Dimensions ( W x D x H )11.6*7.1*1.7 in. (294*180*44 mm)

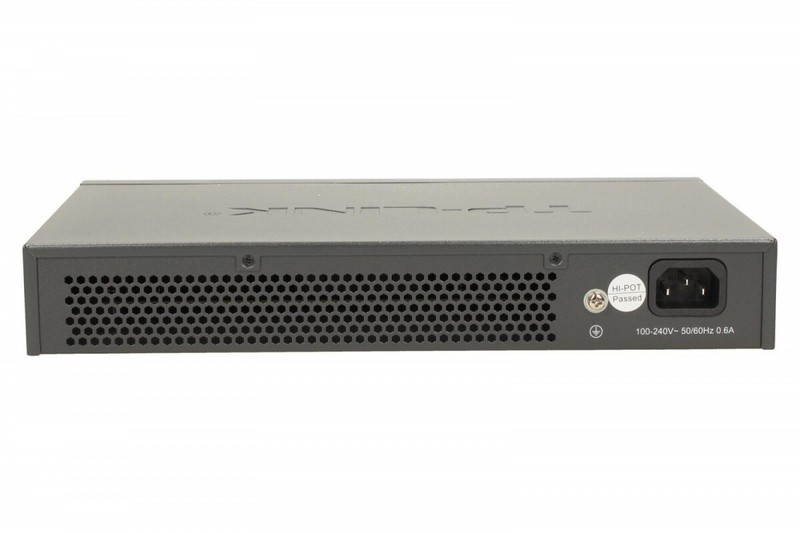

Power Supply100-240VAC, 50/60Hz

PERFORMANCE

Switching Capacity32Gbps
MAC Address Table8K
Packet Forwarding Rate23.8Mpps
Jumbo Frame10KB
Green Technology Innovative energy-efficient technology saves power up to 40%
Transfer MethodStore-and-Forward

OTHERS

CertificationFCC, CE, RoHs
Package Contents16-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
