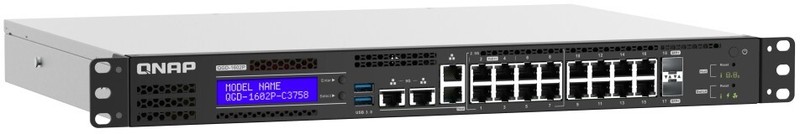

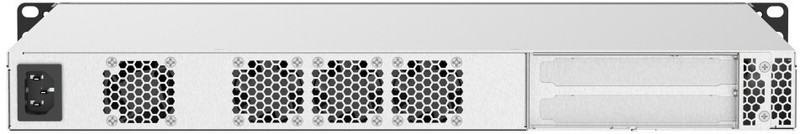

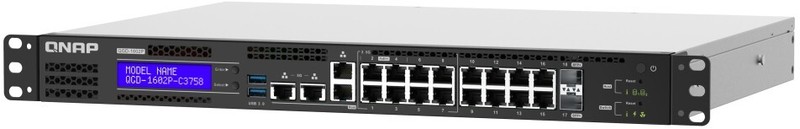

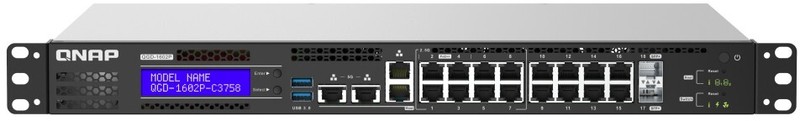

Qnap Managed Switch QGD-1602P-C3558-8G-EU L2 PoE C3558
- Gigabit RJ-45: 8
- Klass: Managed
QGD-1602P State-of-the-art PoE switch with 2.5GbE and 10GbE support for Wi-Fi 6 and SD-WAN solutions
QNAP's QGD-1602P is the world's first managed PoE switch with virtual machine support. The QGD-1602P is equipped with 2.5GbE and 10GbE SFP+ ports and PoE output up to 90W, enabling the creation of a fast, high-power PoE network infrastructure for Wi-Fi 6 access points and routers. With a dual-processor design, the QGD-1602P uses 2.2 GHz multi-core Intel Atom processors with dual SATA drive bays to support virtual machines and QTS applications. The QGD-1602P not only supports IP surveillance, network security, wireless access point management, and storage expansion applications, but also combines QuWAN to build an SD-WAN infrastructure with other QNAP devices in multiple locations, enabling a durable and secure IT infrastructure. With 20GbE internal bandwidth and Intel QuickAssist Technology (Intel QAT), the QGD-1602P provides the high-performance transmission required for edge virtualization and IPsec VPN, and offers small and medium-sized enterprises a cost-optimized and centrally managed LAN deployment solution.
PoE++/PoE+
Compliance with IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. It offers 4 90W ports and 12 30W PoE Gigabit ports. Capable of providing a total power supply of 380W to meet high power device (PD) requirements and support intelligent PoE management features.
10GbE connectivity
Two 10GbE SFP+ ports provide computers, LAN switches and NAS servers with greater bandwidth, increasing performance for applications such as virtualization, 4K video editing and file sharing.
Layer 2 network
It provides comprehensive Layer 2 management features (e.g. VLAN, LACP, QoS IGMP Snooping and Wake-on-LAN) and user-friendly network management software. IT staff can effectively control network bandwidth and increase security using a web-based management interface.
2 M.2 PCIe slots
Use SSD drives as cache or in a storage pool to access files faster.
Flexible PCIe expansion
Two PCIe Gen3 x4 slots allow users to install 10GbE network cards, dual-port QM2 M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gb/s) cards, or wireless networking cards.
Mesh VPN
Hosting container applications and virtual machines with various operating systems. Flexible installation of QuWAN, virtual router, firewalls or wireless LAN managemnt software for various network management applications.
QGD-1602P-C3558-8G:
- 4 RJ45 2.5GbE 802.3bt 90W PoE ports
- 4 RJ45 2.5GbE 802.3at 30W PoE ports
- 8 RJ45 Gigabit 802.3at 30W PoE ports
- 2 10GbE SFP+ ports
- Intel Atom C3558 quad-core 2.2 GHz processor
- 8 GB DDR4 RAM
- With support for hosting up to 4 virtual machines
