A Perfect Managed Edge Switch with Advanced L2/L4 Switching and Security

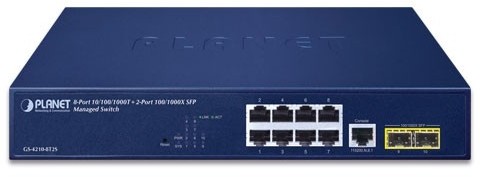

PLANET GS-4210-8T2S is an 8-Port Gigabit Managed Ethernet Switch with SFP interfaces specially designed to build a full Gigabit backbone to reliably transmit and forward data to remote network through fiber optic. It provides 8 10/100/1000BASE-T copper ports and 2 extra 100/1000BASE-X SFP fiber optic interfaces with built-in power system. Besides support for 20Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the GS-4210-8T2S provides user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions. It is the best investment for businesses and SOHOs expanding or upgrading their network infrastructures.





Cybersecurity Network Solution to Minimize Security Risks

The GS-4210-8T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, ARP Inspection Protection, 802.1x port-based and network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.





Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-8T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.





Environmentally-friendly, Fanless Design for Silent Operation

The GS-4210-8T2S with a desktop-sized metal housing is designed to operate quietly and effectively as it is fanless and comes with optimal power output capability. Thus, the GS-4210-8T2S can be deployed in any environment without affecting its performance.



IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-8T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.





Robust Layer 2 Features

The GS-4210-8T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-8T2S allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.





Efficient Traffic Control

The GS-4210-8T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security

The GS-4210-8T2S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Friendly and Secure Management

For efficient management, the GS-4210-8T2S is equipped with Command line, Web and SNMP management interfaces.

?With the built-in Web-based management interface, the GS-4210-8T2S offers an easy-to-use, platform-independent management and configuration facility.?For text-based management, it can be accessed via Telnet and the console port.?By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.Moreover, the GS-4210-8T2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.





Flexible Long-distance Extension Solution

The two mini-GBIC ports built in the GS-4210-8T2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Intelligent SFP Diagnosis Mechanism

The GS-4210-8T2S  supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



Department/Edge Security and QoS Switches for SMBs

The GS-4210-8T2S connects up to 10 high-speed workstations in the Ethernet environment, in which its two SFP mini-GBIC interfaces uplink to a department backbone. Moreover, the Switch provides 20 Gigabit per second switch fabric and high bandwidth for backbone connection. The GS-4210-8T2S improves the network efficiency and protects the network clients with the following powerful features:

?IPv6/IPv4 dual stack management?Layer 2 to Layer 4 security and QoS?802.1x Port-based network access authentication security?IPv4 Multicast IGMP and IPv6 MLD SnoopingThe advanced functionality of the GS-4210-8T2S eliminates traditional issues associated with the use of Ethernet. Users can be separated with advanced VLAN functionality to enhance security. It makes the GS-4210-8T2S one of the best and most cost-effective switch solutions for SMBs.





FTTX/MAN Application Switch

The GS-4210-8T2S features SNMPv3 and RMON Groups security functions. The SNMPv3 security structure consists of security models and helps to isolate each model with its own security levels to enhance the security protections in the FTTX and MAN Network. With its two built-in dual-speed SFP slots, the deployment distance of the GS-4210-8T2S can be extended from 550 meters (multi-mode fiber) to above 10/50/70/120 kilometers (single-mode fiber), thus providing a high-performance edge service for FTTx solutions. To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises, the various distances of SFP (small-form factor) and Bidi (WDM) transceivers are optional for customers’ choices. For security and various applications, the SFP ports of the GS-4210-8T2S can be configured with VLAN settings and connected to different units, offices, floors, houses and departments.
