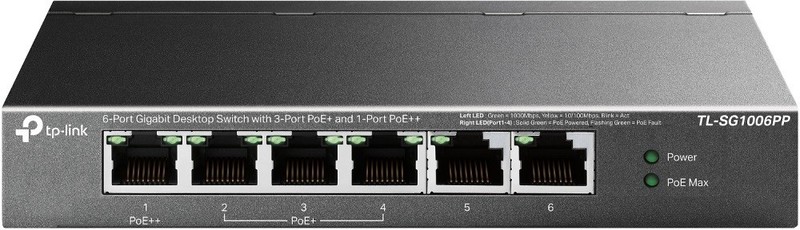

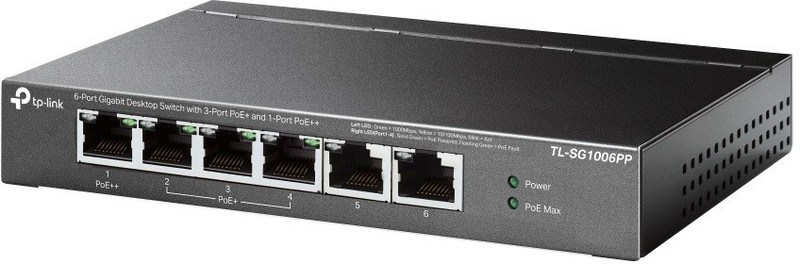

Gigabit Desktop Switch, 6 ports, including 3 PoE+ ports and 1 PoE++ port

• 6 RJ45 ports 10/100/1000 Mb/s
• With 1 PoE++ port and 3 PoE+ ports, you can transfer data and power using single cables
• Compatibility with devices in the IEEE 802.3af/at/bt standard
• 802.1p/DSCP QoS enables smooth delay-sensitive traffic
• Up to 30W of power on each PoE+ port and up to 60W on the PoE++ port
• Up to 64W of total PoE power
• Up to 250m data and power transmission range in Extend mode
• PoE Auto Recovery ensures stable operation of PoE devices by automatically restarting them when they disconnect or stop responding

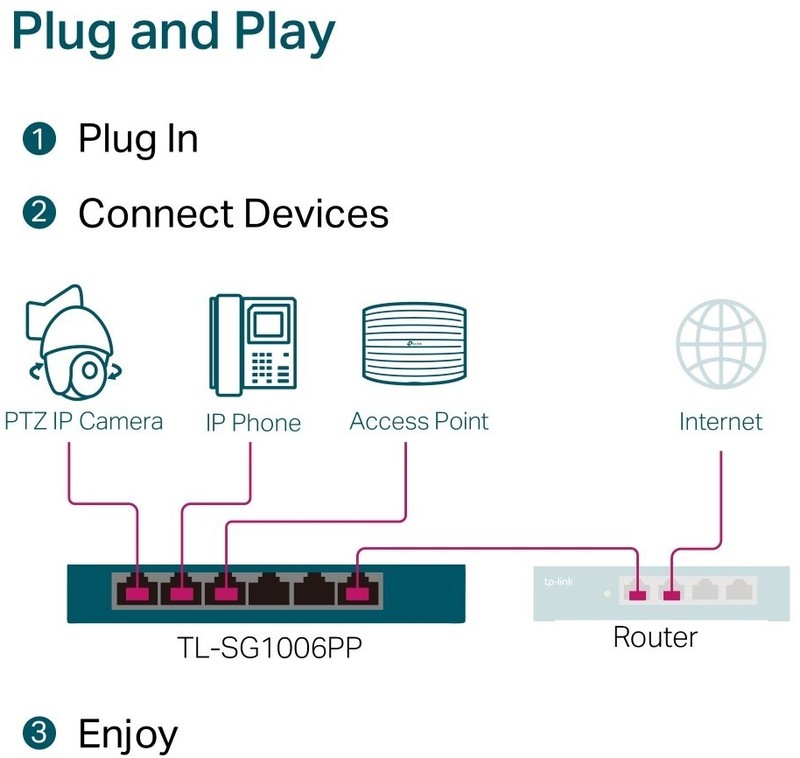

• Plug and Play connection, no configuration or complicated installation required.

A switch designed for many applications

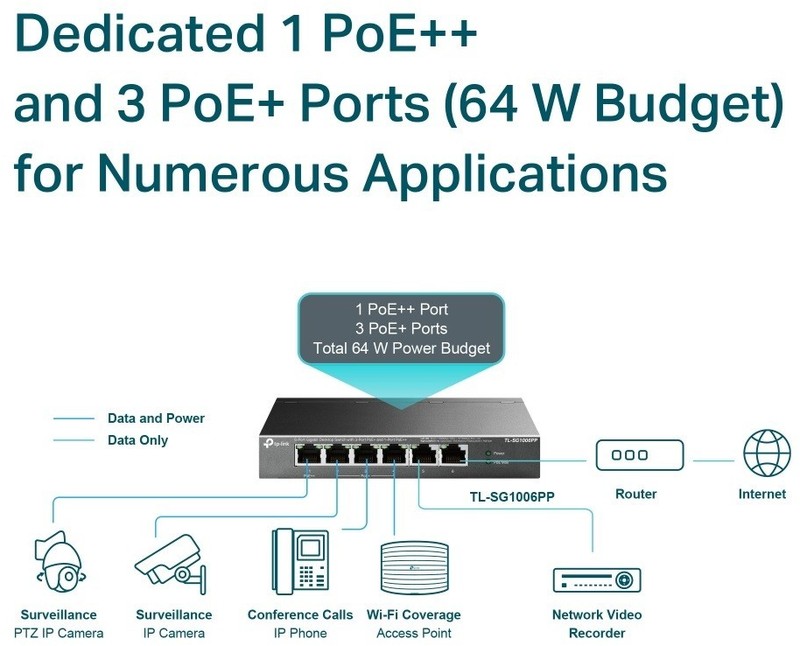

1 PoE++ port, 3 PoE+ ports, total PoE power 64W

Port 1 is 802.3af/at/bt PoE++ compliant, providing up to 60W of power supply, while ports 2-4 are 802.3af/at PoE+ compliant and support up to 30W of power on each port. A total PoE power budget of 64W* across all PoE ports supports a wide range of applications such as monitoring in offices, dorms and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers and more.

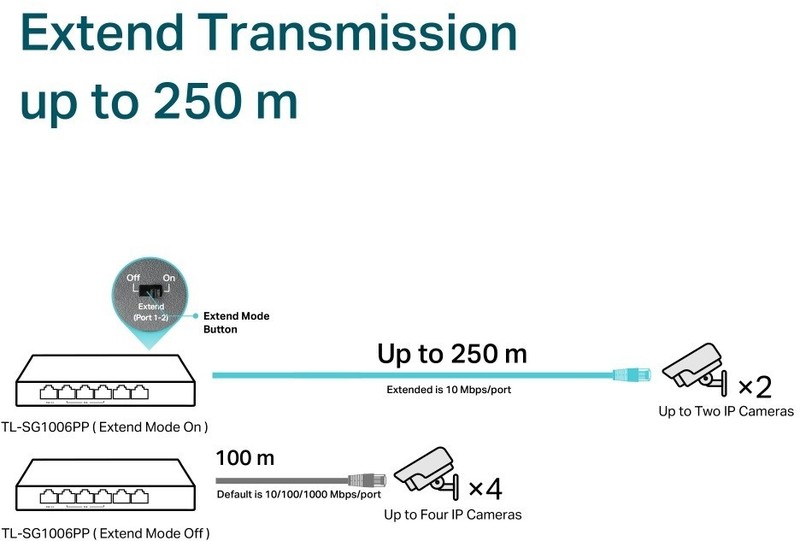

Switch designed for IP monitoring systems up to 250 m transmission range

In Extend mode, the PoE transmission range reaches up to 250 m*, making the switch an excellent solution for deploying IP cameras over a large area.

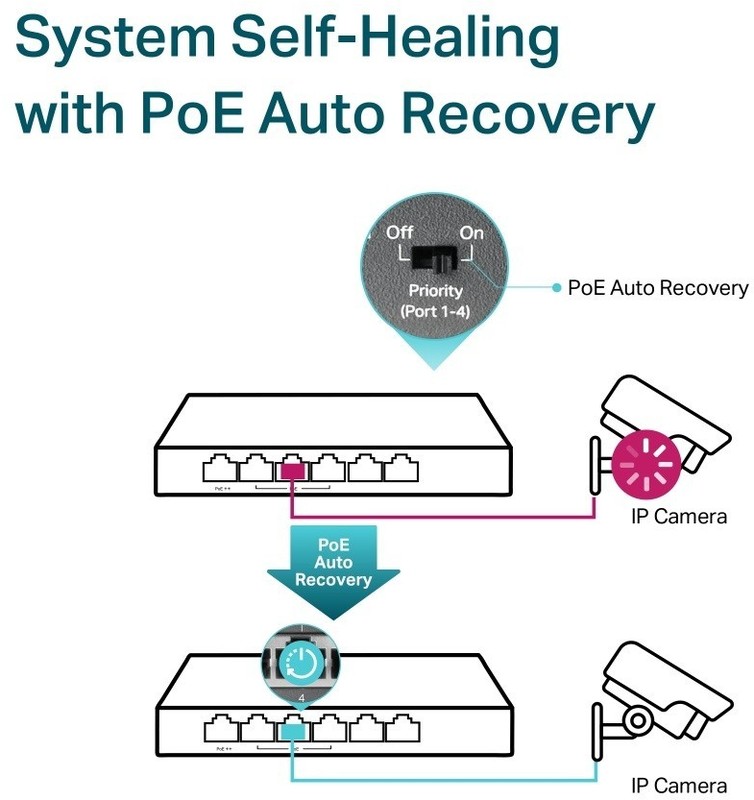

Auto repair system and PoE Auto Recovery

The switch automatically detects and restarts PoE-powered devices such as cameras and access points when they go offline or stop responding. This guarantees the stability of their operation without the need to monitor their operation and manually restart.

Intelligent management of energy consumption

When total power consumption exceeds 64W, Intelligent Power Management will turn off power to the lowest priority port to ensure power is supplied to higher priority ports and thus protect the device from overload. This feature also enables automatic detection of the required PoE power of a given device and protects non-PoE devices from damage.

Durable metal housing

The sensitive switch components are protected by a durable housing made of high-quality metal. Such solid protection guarantees long-term and stable operation of the device. TL-SG1006PP is a reliable product, which is confirmed by numerous tests based on rigorous standards.
